The order below is based on a WL-Series with Option A secondaries
AEVIT 2.0 Chassis
AEVIT-CHASSIS-2
The Chassis houses the primary control modules, serves as the connection point for the evaluation controls, and contains a built-in flash drive for easy software updates and stored telemetry data.
Steering Servomotor
KIT-STR-SRVO-1
The Steering Servomotor directly controls the steering of the vehicle. The servo will be mounted onto the vehicle's steering column.
Vehicle Column Modification
Column-Kit
This modification includes mounting a receiver plate and a gear to the steering column to allow for the mechanical coupling of the AEVIT steering servomotor to the column.
Gas/Brake Servomotor
KIT-G/B-SERVO-U
The Gas/Brake Servomotor directly controls the acceleration and braking of the vehicle. The servo will be mounted onto the floor bracket in the driver's footwell.
Pedal Kit
KIT-INS-21T-PDL
The Pedal Kit modifies the vehicle's gas pedal in connection to the Gas/Brake Servomotor.
Floor Bracket
BRKT-EGB2-020
The Floor Bracket is the mounting point for the Gas/Brake Servo and will be installed in the driver's footwell.
AEVIT 2.0 VIM
AEVIT-VIM-MOD
The Vehicle Interface Module (VIM) contains the termination point for all secondary control wire harnesses and is a direct connection to the vehicle's On Board Diagnostic (OBD) computer.
Vehicle Interface Cover
COVR-AEVIT-331
The VIM Cover protects the Vehicle Interface Module after installation.
Vehicle Interface Harness
CAB-AEVIT-VI2
The Vehicle Interface Harness connects to the Vehicle Interface Module on the VI port and controls an “Engine Kill” feature, Steering servo engage sense and/or Switched Ignition sense.
VIM Battery Harness
CAB-AEVIT-VIM
VIM Battery Harness connects the VIM to battery power.
AEVIT 2.0 GenX Display
AEVIT-DISPLAY-2.0X
The Display touch screen is the control center for all operation and programming. All secondary controls will appear on the screen as easy to read icons.
AEVIT 2.0 Wheel Input
AEVIT-DW-002
The Wheel Input Device is the driver's steering control.
AEVIT 2.0 Lever Input
AEVIT-DL-002
The Lever Input Device is the driver's acceleration and braking control.
Power Harness with Fuse
CAB-AEVIT-MP
Main power harness that routes power to the VIM and Control Module.
AEVIT 2.0 AUX Battery
AUXBAT-2.0
An independent back-up battery for the the AEVIT System.
OBD Can Module
OBD-CAN-MOD
The OBD-CAN Module interfaces with the OEM CAN system by sending messages to specific body computers to turn actuators on and off. It connects to the Vehicle Interface Module on the AEVIT CAN BUS port and to the vehicle’s CAN system.

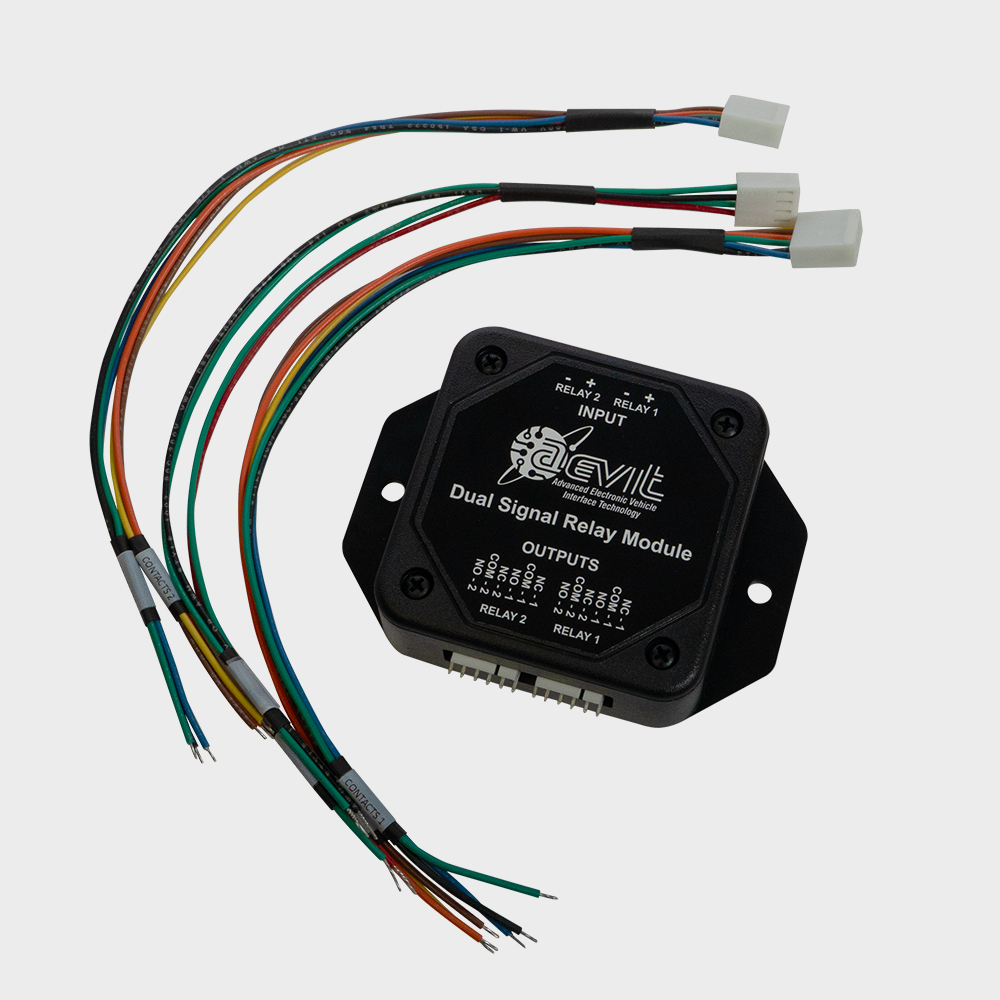

Dual Signal Relay Module
PARK-BRAKE-DSR
The Park Brake Wire Harness is wired directly to the DSR module and then to the vehicle.
CAN FD Interceptor Module
AEVIT-CANFD-CEP
The CAN FD Interceptor Module installs into the vehicle CAAN bus at specific locations and intercepts unique CAN FD messages from the vehicle and resends them when AEVIT wants to control those functions.

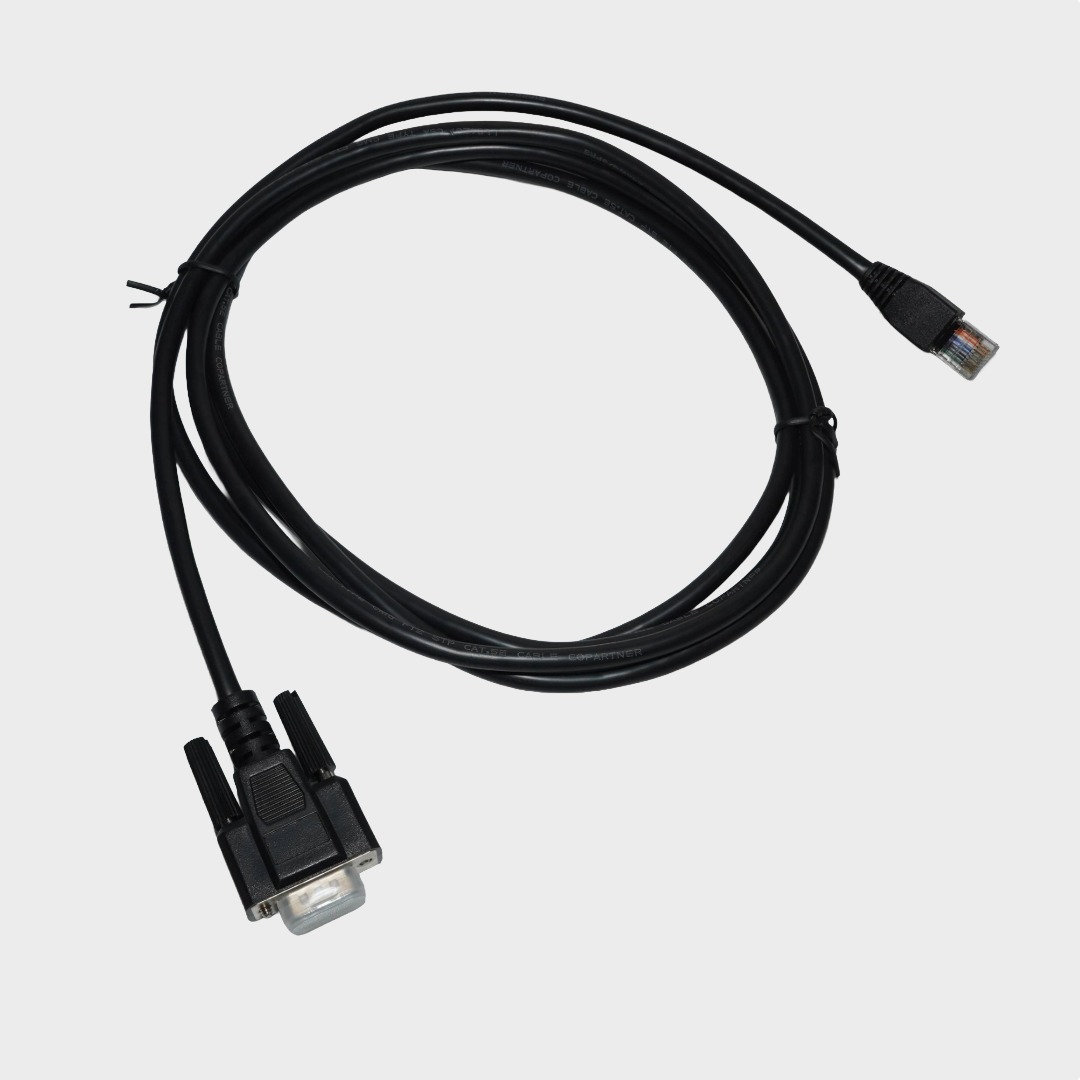

CAN Cable
CAB-CAN-DB9RJ45
Connection Cable for CAN FD Interceptor.
Horn/AUX 4/ Park Cable
CAB-AEVIT-HD
Contains the Horn and Dimmer, AUX 4, and Park Brake Wire Harness and connects to the Vehicle Interface Module via the HD port.

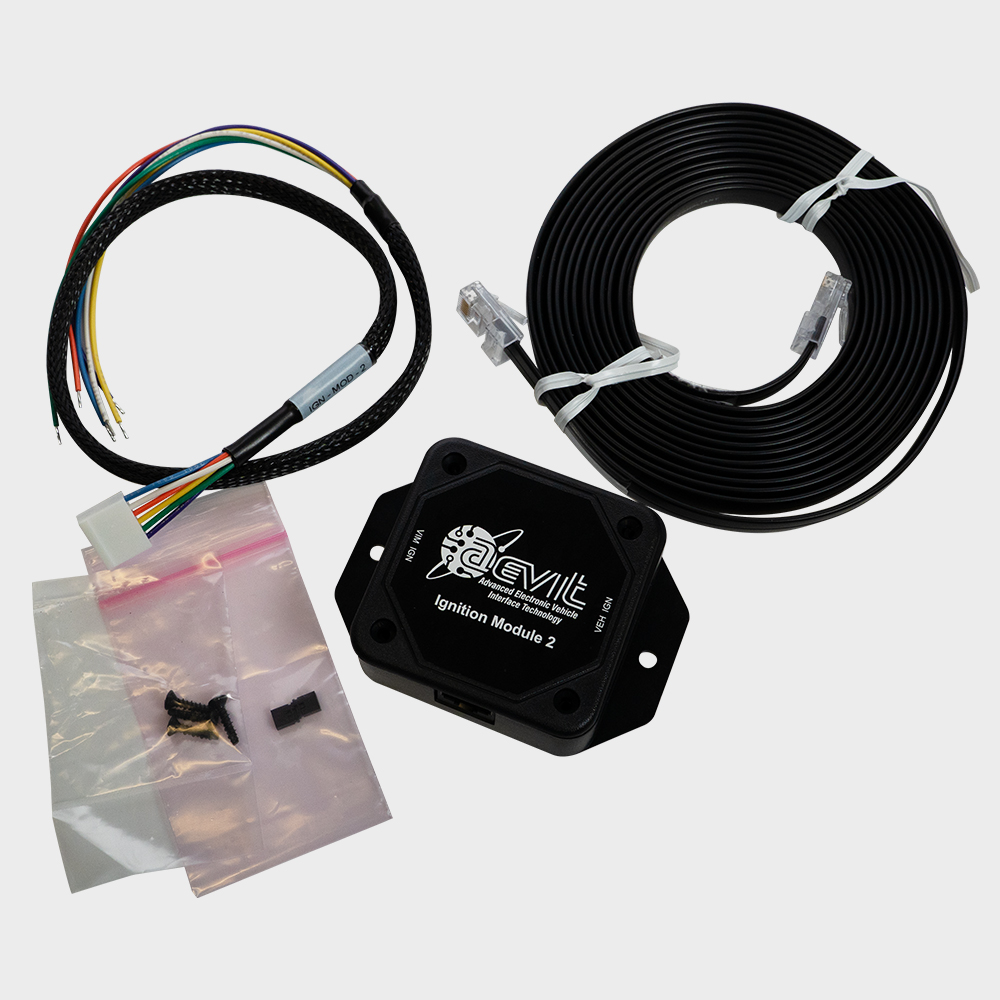

Ignition Module
AEVIT-IGN-MOD-2
The Ignition Module connects to the Vehicle Interface Module using the 8 pin telco connector via the IM port, then wired directly into the vehicle’s Push-Button Start switch for external ignition control.
Windows / Locks AUX Module
AEVIT-WIN-MOD
The Windows and Door Locks Module is connected to the Vehicle Interface Module port WL via an 8-conductor telco cord for window and locks control. This module is also used to wire in auxiliary controls 1-3 or mirrors.
Smart Shift Actuator and Bracket
SMART-SHIFT-KIT
The Smart-Shift system can be installed in almost any vehicle equipped with an automatic transmission to remotely operate the vehicle’s shifting functions.
Fastener Kit
KIT-SS-ASSY-04T
The Fastener Kit includes a cable bracket, pin, and screws needed for the Smart Shift Actuator.
Turn Signal Harness
CAB-AEVIT-TS
The Turn Signal Wire Harness plugs into the Vehicle Interface Module via the TS port for vehicle turn signal control.
Wipers / Cruise Harness
CAB-AEVIT-WC
The Wiper and Cruise Wire Harness is connected to the Vehicle Interface Module via the WC port, and then wired directly into the vehicle.
Lights Harness
CAB-AEVIT-LT
The Lights Wire Harness plugs into the Vehicle Interface Module via the LT port for vehicle lights control.
Cruise Harness
Additional harness to be soldered within the OEM clock spring harness.
Relay Connector and Cable
Cab-Relay-5PIN
The Relay Connector and Cables are used in switching applications to control high-current circuits.
Momentary Push Switch
SW-PH-MOMNTRY
A red Momentary Switch to be used to wake up the system.
Relay with Spike Suppression
REL-12VDC-SPDT
The Relay with Spike Suppression prevents high-voltage spikes from damaging the electronic components.
Diode For Ignition Module
1N4007 Diode
1.5k Ohm Resistor for WC Harness
10k Ohm Resistor for LT / WC Harness
The order below is based on a WL-Series with Option C secondaries
AEVIT 2.0 Chassis
AEVIT-CHASSIS-2
The Chassis houses the primary control modules, serves as the connection point for the evaluation controls, and contains a built-in flash drive for easy software updates and stored telemetry data.
Steering Servomotor
KIT-STR-SRVO-1
The Steering Servomotor directly controls the steering of the vehicle. The servo will be mounted onto the vehicle's steering column.
Vehicle Column Modification
Column-Kit
This modification includes mounting a receiver plate and a gear to the steering column to allow for the mechanical coupling of the AEVIT steering servomotor to the column.
Gas/Brake Servomotor
KIT-G/B-SERVO-U
The Gas/Brake Servomotor directly controls the acceleration and braking of the vehicle. The servo will be mounted onto the floor bracket in the driver's footwell.
Pedal Kit
KIT-INS-21T-PDL
The Pedal Kit modifies the vehicle's gas pedal in connection to the Gas/Brake Servomotor.
Floor Bracket
BRKT-EGB2-020
The Floor Bracket is the mounting point for the Gas/Brake Servo and will be installed in the driver's footwell.
AEVIT 2.0 VIM
AEVIT-VIM-MOD
The Vehicle Interface Module (VIM) contains the termination point for all secondary control wire harnesses and is a direct connection to the vehicle's On Board Diagnostic (OBD) computer.
Vehicle Interface Cover
COVR-AEVIT-331
The VIM Cover protects the Vehicle Interface Module after installation.
Vehicle Interface Harness
CAB-AEVIT-VI2
The Vehicle Interface Harness connects to the Vehicle Interface Module on the VI port and controls an “Engine Kill” feature, Steering servo engage sense and/or Switched Ignition sense.
VIM Battery Harness
CAB-AEVIT-VIM
VIM Battery Harness connects the VIM to battery power.
AEVIT 2.0 GenX Display
AEVIT-DISPLAY-2.0X
The Display touch screen is the control center for all operation and programming. All secondary controls will appear on the screen as easy to read icons.
AEVIT 2.0 Wheel Input
AEVIT-DW-002
The Wheel Input Device is the driver's steering control.
AEVIT 2.0 Lever Input
AEVIT-DL-002
The Lever Input Device is the driver's acceleration and braking control.
Power Harness with Fuse
CAB-AEVIT-MP
Main power harness that routes power to the VIM and Control Module.
AEVIT 2.0 AUX Battery
AUXBAT-2.0
An independent back-up battery for the the AEVIT System.
OBD Can Module
OBD-CAN-MOD
The OBD-CAN Module interfaces with the OEM CAN system by sending messages to specific body computers to turn actuators on and off. It connects to the Vehicle Interface Module on the AEVIT CAN BUS port and to the vehicle’s CAN system.
Dual Signal Relay Module
PARK-BRAKE-DSR
The Park Brake Wire Harness is wired directly to the DSR module and then to the vehicle.
CAN FD Interceptor Module
AEVIT-CANFD-CEP
The CAN FD Interceptor Module installs into the vehicle CAAN bus at specific locations and intercepts unique CAN FD messages from the vehicle and resends them when AEVIT wants to control those functions.
CAN Cable
CAB-CAN-DB9RJ45
Connection Cable for CAN FD Interceptor.
Horn/AUX 4/ Park Cable
CAB-AEVIT-HD
Contains the Horn and Dimmer, AUX 4, and Park Brake Wire Harness and connects to the Vehicle Interface Module via the HD port.
Turn Signal Harness
CAB-AEVIT-TS
The Turn Signal Wire Harness plugs into the Vehicle Interface Module via the TS port for vehicle turn signal control.
Wipers / Cruise Harness
CAB-AEVIT-WC
The Wiper and Cruise Wire Harness is connected to the Vehicle Interface Module via the WC port, and then wired directly into the vehicle.
Cruise Harness
Additional harness to be soldered within the OEM clock spring harness.
Relay Connector and Cable
Cab-Relay-5PIN
The Relay Connector and Cables are used in switching applications to control high-current circuits.
Momentary Push Switch
SW-PH-MOMNTRY
A red Momentary Switch to be used to wake up the system.
Relay with Spike Suppression
REL-12VDC-SPDT
The Relay with Spike Suppression prevents high-voltage spikes from damaging the electronic components.
1.5k Ohm Resistor for WC Harness
